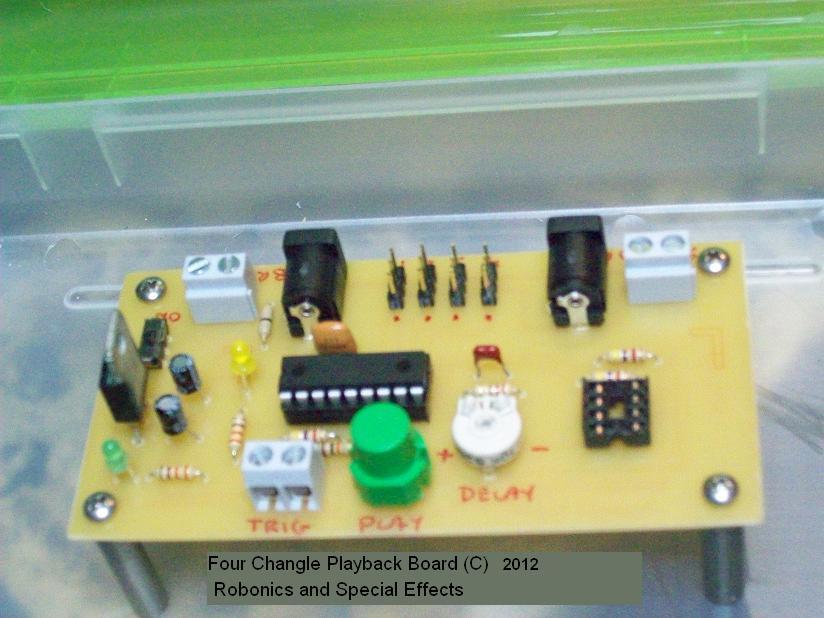

This is the Four Servo Play Back Board With this device you can Play Back Four Servos at one time. Used for 3 Axal movements like the 3 Axal Skulls, or any thing that you need to use servols for. Eye movement. Arm movment, Turning relays on off etc. This devise has a time delay function if you need one. You can set your props, or lights etc to come on 1 sec. up to 10 sec. delay by using any trigger device. Matts - IR - Light beam etc. One EEPROM Chip Included with basic 4 servo out put for demo. You can use as many 4 Servo Playback Boards as you need too. All of the Playback Boards can be Triggered all at once. Or triggered at differents times. It is up to you. Can be reprogramed for your own needs. Or I can program it for you for a small extra charge. Just let me know what it needs to do. Has full information included. Each servo output has a time of - 1 sec. up to 10 min. each out put depending on how long you run your servos. Two Power Supplys are needed to run the Playback Board. If you more then one Playback Board? Each Power Supply can be connected together up too 4 Playback Boards at once. All Boards have full information included.

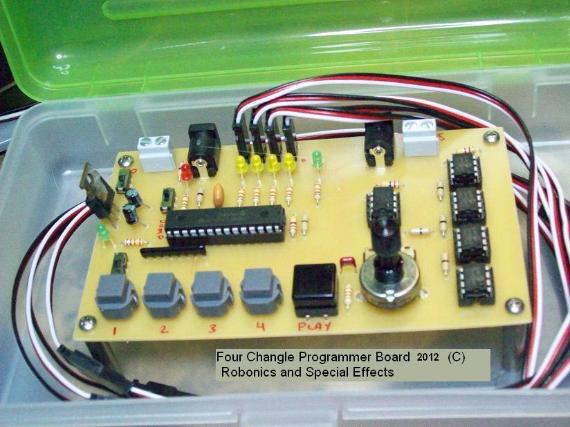

This is the Four Channel Programmer Board. With this device you can program the 4 Servo Play Back Board. It works just like the 4 Servo Play Back Board except it is able to program the IC chip that can be removed, and placed into the Servo Play Back Board giving you the power to change your show any time you wish with out using a computer. Does Not Include Servo Wires. One EEPROM Chip Included with basic 4 servo out put for demo. Can be reprogramed for your own needs. Or I can program it for you for a small extra charge. Just let me know what it needs to do. Has full information included.

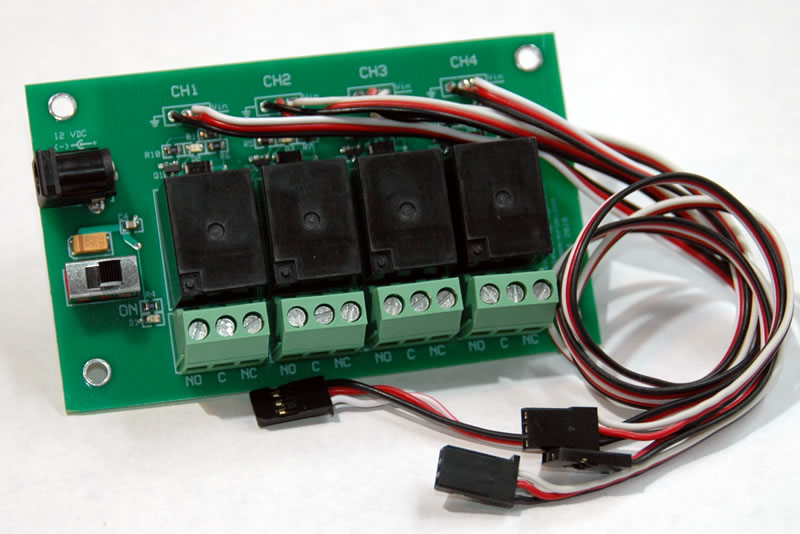

This is the 4 Relay Controller Board that can be used to control any AC device, or any other devices that you need to turn on - off. The realys have a norm. open - norm. closed that you can connect your devices too. Lights on - off. Props popping up - down etc. Has full information included.
This is the extra EEPROM Chip that is used in my. Four Channel Programmer Board. And in my. Four Servo Playback Board .
This is the Original Animation Control Device Fully Assembled ready to go with all the electronic parts to make it run. Very old picture. I use the new circuit board now with all the electronics mounted on it. This device has many pattens, and copy rights on it all over the world.

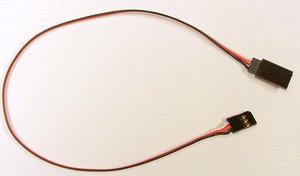

This is the servo wires that I use for all of my Programmer Boards, and Servo Play Back Boards. You can use whatever servo wires that you wish.
ALL MY ITEMS CARRY A FULL SIX MONTH WARRANTY. EXCEPT LEFT OUT IN THE
WEATHER - DROPPED IN WATER, ACT OF GOD, SNOWED ON, STEPPED ON OR NOT TAKEN CARE OF THE RIGHT WAY. WORKING ON ANY DEVICE OR BOARDS THAT I SELL WILL
VOID ALL WARRANTY'S IN FULL. PRICES ARE SUBJECTED TO CHANGE. IF I SERVICE ANY OF MY DEVICES OUT OF WARRANTY? A SERVICE CHARGE WILL BE APPLIED INCLUDING PARTS NEEDED TO REPAIR THE ITEM. PLUS SHIPPING, AND HANDLING. IF ITEM IS IN WARRANTY? YOU MUST PROVE IT WITH A RECITE, OR A COPY OF WHEN ITEM WAS SOLD. YOU PAY SHIPPING, AND HANDLING. ALL MY ITEMS, AND BOARDS HAVE MANY PATENS, AND COPY RIGHT LAWS ON THEM. IF ANY OF MY BOARDS, OR ITEMS ARE REVERSED ENGINEERED, OR REMADE WITH OUT MY CONSENT IN WRIGHTING? I WILL USE ALL MY RIGHTS TO FIND THAT PERSON, OR PERSONS THAT DID IT. THIS APPLIES WORLD WIDE. ROBOFX1
